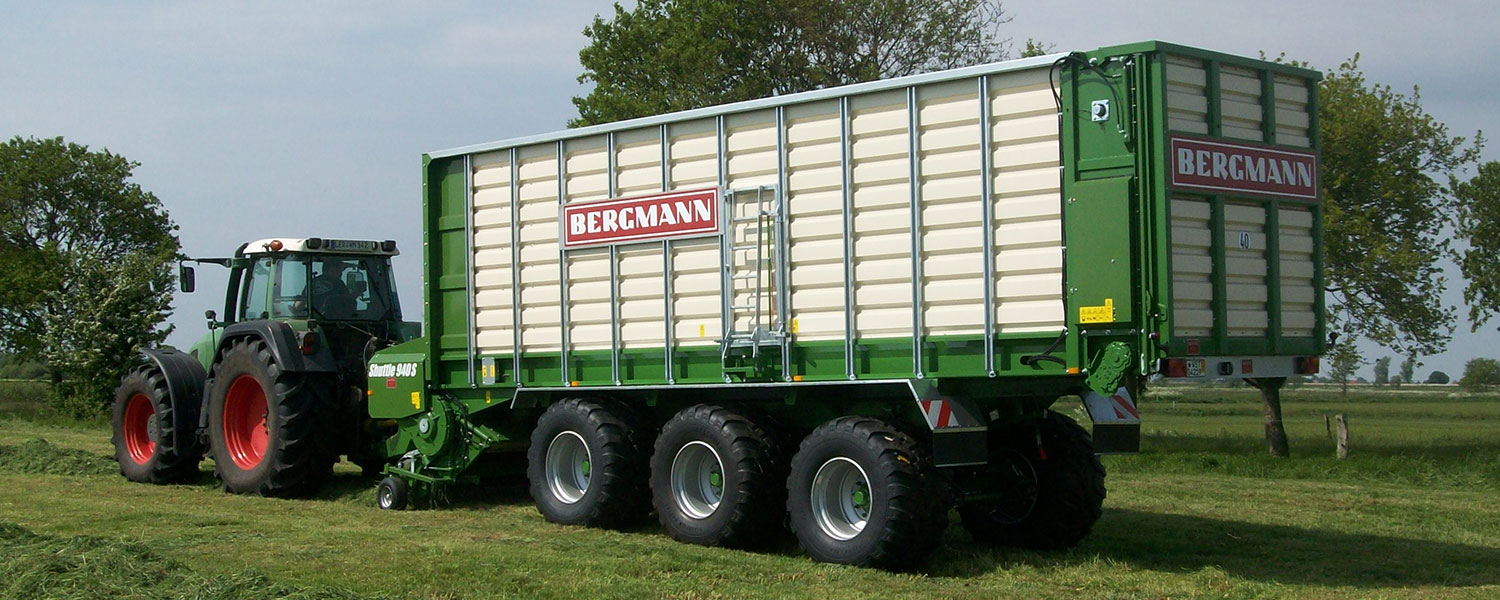

Shuttle



Top volume + top performance = efficiency



Shuttle - the large capacity silage trailer with one-rotor system - sets qualification benchmarks.



TOP-Engineering



  • 53 knives in a row
  • Theoretical cutting length: 34 mm
  • Capacity: 35 - 44 m³
  • Tlosed oil bath spur gearbox with 120 mm diameter shaft
  • 2 or 3 aggressive dosing rollers
  • Tailgate indicator
  • Tires up to 26.5"
  • Optimal for use as silage transport trailer
  • Hydraulic chassis (optional)



TOP-Loading



  • smooth material flow without constrictions
  • pick-up width: 2,20 m



TOP-Feed quality



  • consistent quality of chopped material
  • high compression in the silo
  • optimal feed structure, providing good digestion and energy conversion for the animals



TOP-Handling



  • toolless change of knives within shortest time
  • convenient electro-hydraulic operation

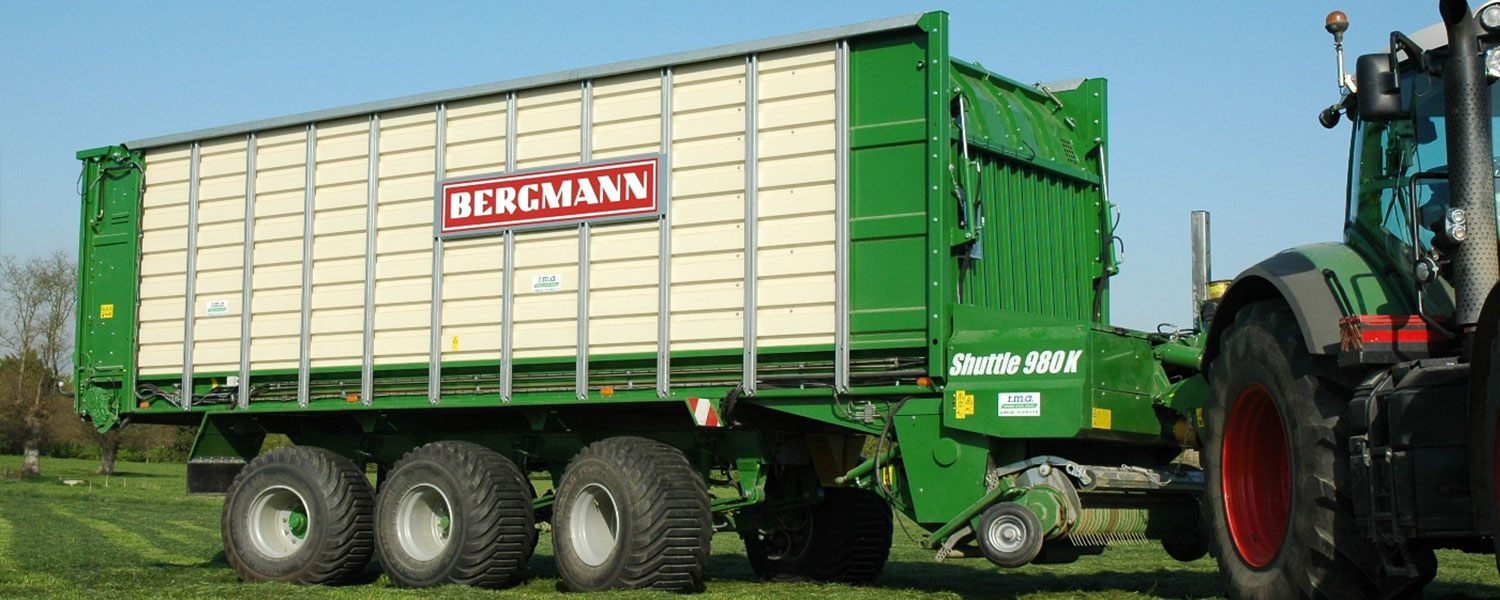

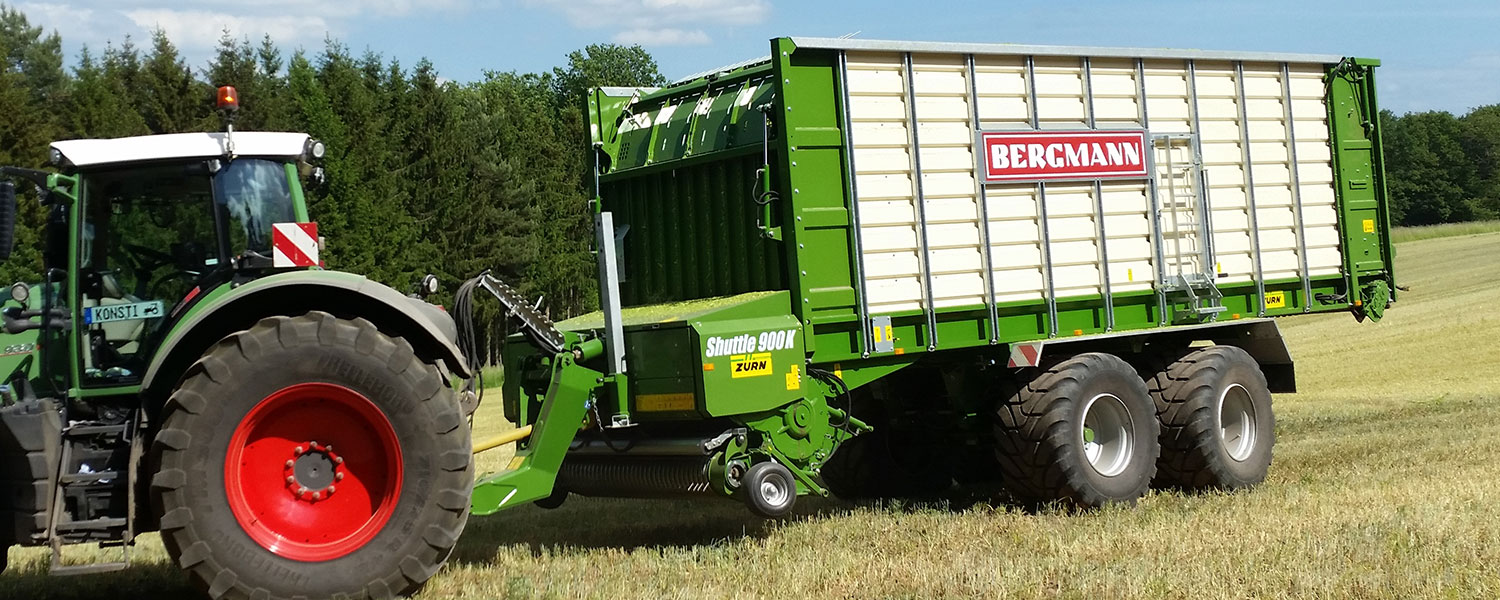

Dimensions and weight Shuttle 900 K Shuttle 980 K
Length: 11,150 mm 11,900 mm
Width: 2,550 mm 2,550 mm
Height: 4,000 mm 4,000 mm
Ground clearance pick-up: ~ 400 mm ~ 400 mm
Ground clearance with extended hydraulic drawbar: ~ 700 mm ~ 700 mm
Net weight: 10,470 kg 12,750 kg
Maximum gross weight: 24,000 - 31,000 kg 34,000 kg
Additional load: 12,530 kg 21,250 kg
Capacity at medium compression: 79,2 m³ 86,4 m³
Capacity according to DIN 11741: 44 m³ 48 m³
Cutting length: 34 mm 34 mm
Number of knives: 53 pcs. 53 pcs.
Pick-up intake width: 2.270 mm 2.270 mm
Power demand:
KW 132 - 257 132 - 257
h.p. 180 - 350 180 - 350
